Moll International offers a wide range of Standard extruded shapes, as well as Custom designs in several grades of Aluminum Alloys and Tempers.

Alloys and Tempers

• 6005 – T1, T5

• 6060 – T5

• 6061 – T6

• 6063 – T1, T4, T5, T6, T42 and T52

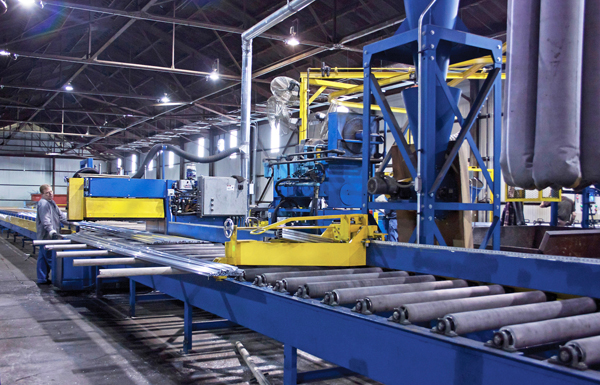

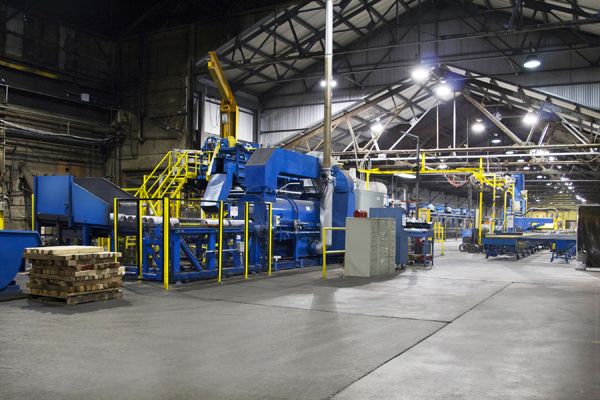

Extrusion Press Capabilities

Press 1: – 1675 ton press – Capable of producing shapes up to 7.750 inch circle size – Cut lengths up to 45 feet (540 inches) – Weight per foot up to 3.300 pounds

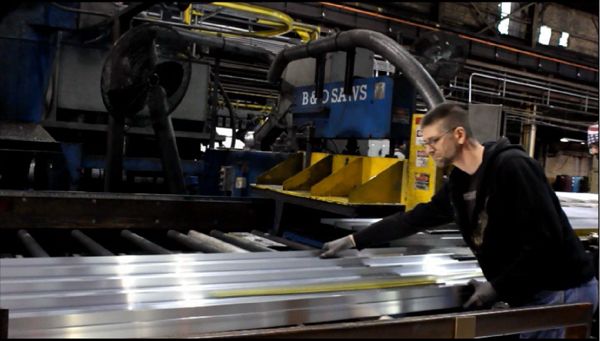

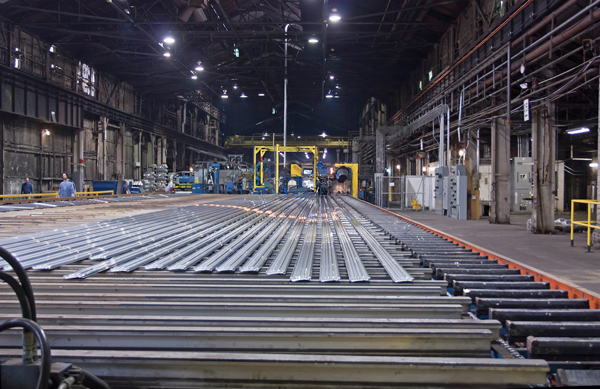

Press 2: – 2000 ton press – Capable of producing shapes up to 8.750 inch circle size – Cut lengths up to 38 feet (456 inches) – Weight per foot up to 4.500 pounds

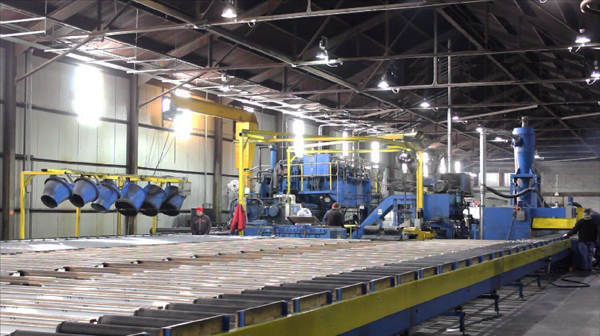

Press 3: – 1675 ton press – Capable of producing shapes up to 7.750 inch circle size – Cut lengths up to 45 feet (540 inches) – Weight per foot up to 3.300 pounds

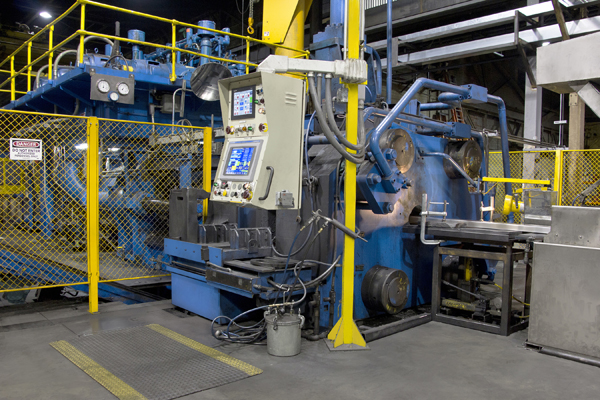

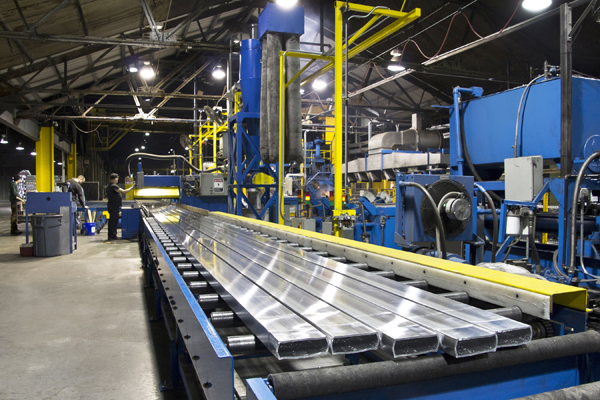

Press 4: – 2200 ton press – Capable of producing shapes up to 8.750 inch circle size – Cut lengths up to 45 feet (540 inches) – Weight per foot up to 4.500 pounds

Secondary Operations

Fabricating and Finishing Capabilities Moll International is able to meet your company’s fabricating and finishing needs with a wide variety of equipment and services. We would be pleased to quote your requirements.

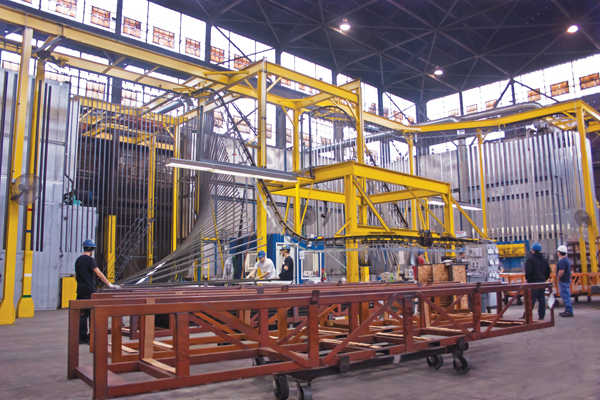

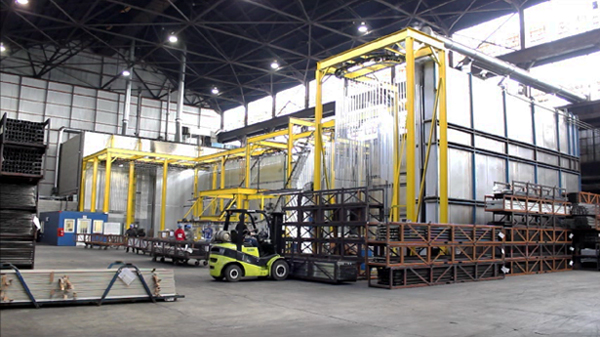

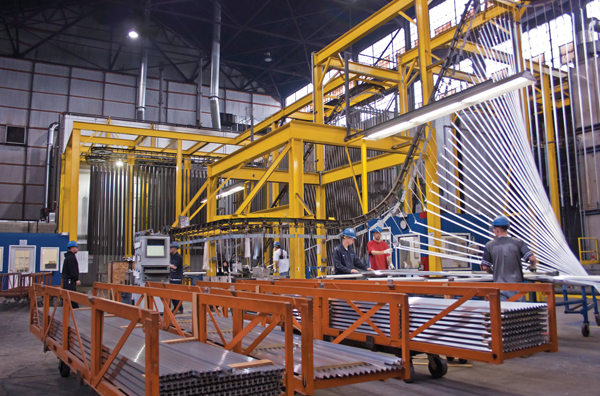

Paint Line: – Electrostatic vertical wet line – Chrome Free 5 stage pretreatment washer – Painting AAMA 2603 See Certificate – Standard industry colors, also specialty colors upon request – Capable of painting extrusion lengths up to 20 feet (240 in.)

Finishes: – Mill finish – as extruded – Clear and color anodized – Paint: wet paint, Kynar, and powder coat

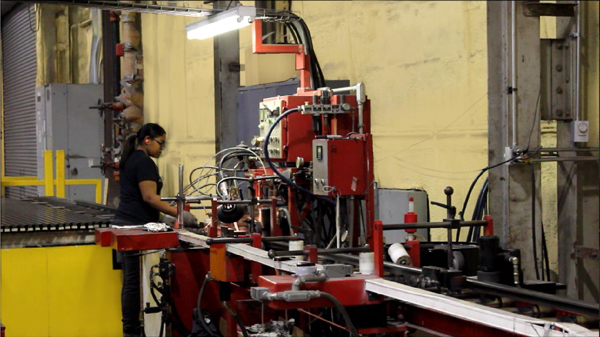

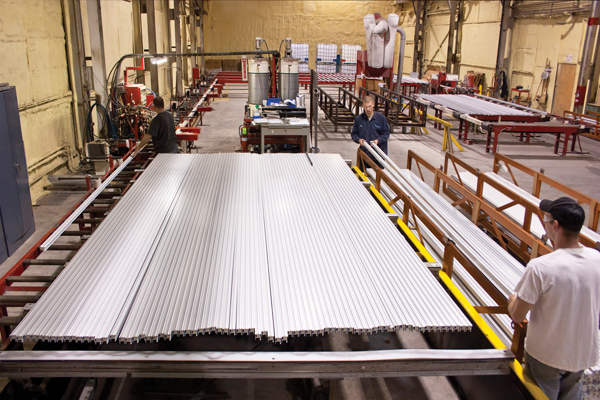

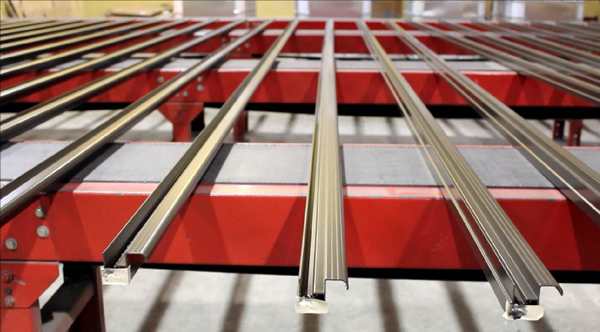

Fabrication capabilities: – Recut – to customer’s specifications – Punching, stamping, notching, etc. - Thermal fill and debridge<

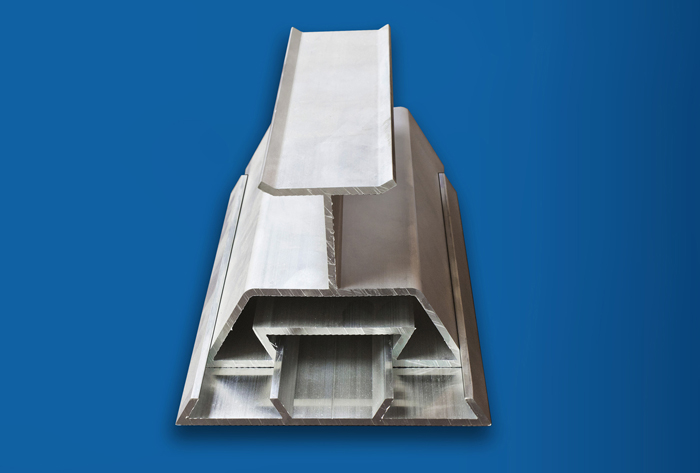

Standard & Custom-shaped Extrusions

Standard Extrusions – To provide customers with a multitude of extruded shapes, Moll International offers numerous solid and hollow shapes from our Standards catalog (see links below).

Standard Angles	Standard Bars with Sharp Corners	Standard Bars with Round Corners
Standard Channels with Sharp and Round Corners	Standard Rods	Standard Tubes with Sharp Corners
Standard Tubes with Round Corners	Standard Rectangle Tubes with Sharp Corners	Standard Rectangle Tubes with Round Corners
Standard Round Tubing	Standard Tees
